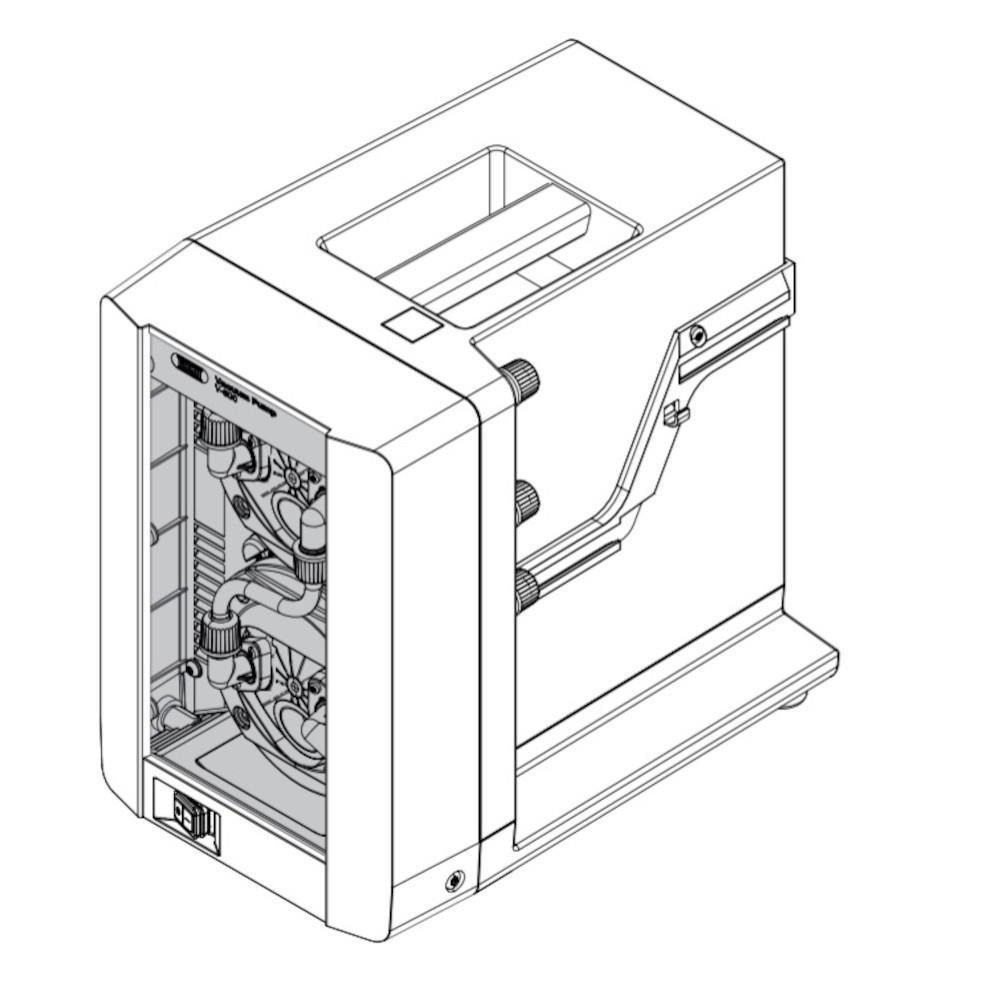

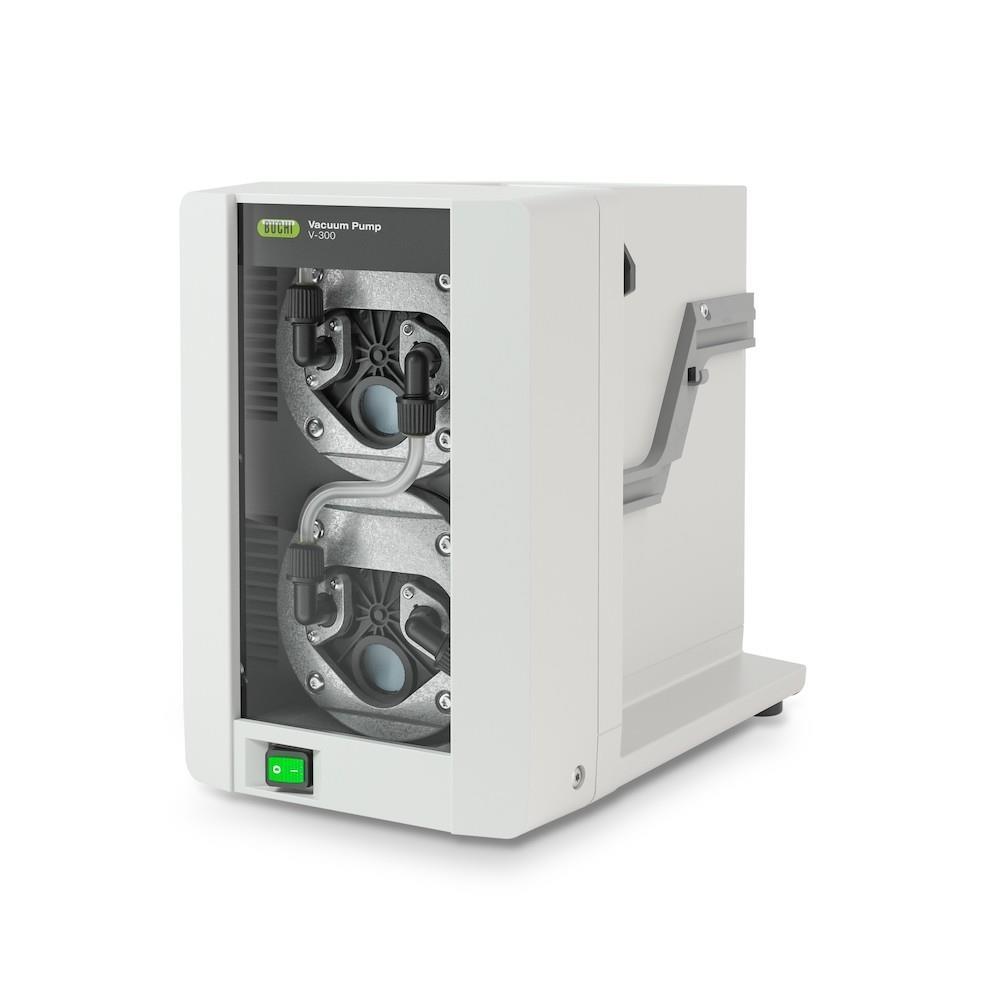

The V-300 vacuum pump is an economical and silent vacuum source. The chemically resistant PTFE diaphragm pump impresses with its very silent and economical operation. With a flow rate of 1.8m3/h and an ultimate vacuum of 5 mbar, it is optimally suited to be combined with the Rotavapor® R-300.

Convenient - silent operation and level detection of the receiving flask
Reliable - high quality materials and easy detection of condensate and particles
Seamless plug & play integration into a Rotavapor® R-300 system
A set vacuum is achieved very precisely by means of speed control operation, due to the absence of sudden pressure changes bumping is minimized
Condensed solvents or particles are easily visible thanks to the transparent front panel
The optional post-pump condenser captures vapor which is otherwise released into the lab atmosphere
EVA1078 (11V300100) - without interface, with Woulff bottle, without condensation assembly
EVA1079 (11V300210) - interface I-300, with Woulff bottle (incl. VacuBox), secondary condenser with insulation
EVA1080 (11V300010) - without interface, with secondary condenser with insulation
